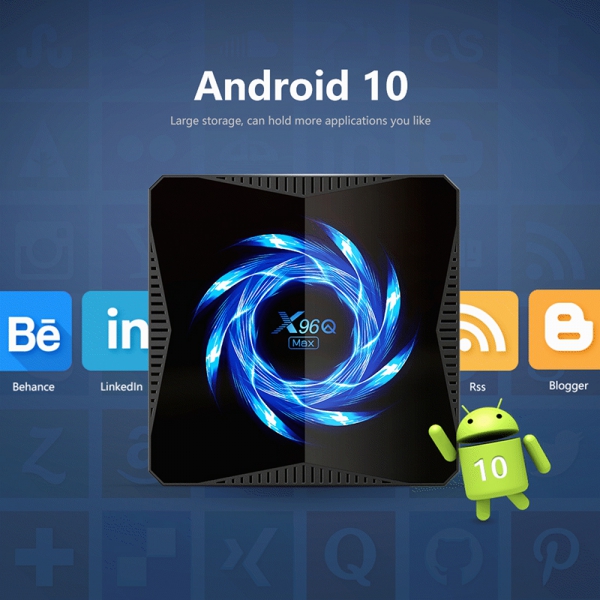

2021 Newest Android 10.0 TV BOX X96QMAX Allwinner H616 Quad Core 2.4G/5G WIFI 6K 4GB RAM 32GB 64G ROM Android TV Boxes X96Q MAX

1.CPU:Allwinner H616 Quad Core ARM Cortex A53

2.DDR3 4GB Original eMMC 32GB OR 64GB

3.IEEE 802.11 b/g/n/ac 2.4G/5.8G WIFI

4.Operation System:Android 10.0

5.GPU:G31 OPenGL3.2

6.4K*2K UHD Output, HDMI 2.0A

7.Resolution: 6k

8.KODI FULLY LOADED

  • CPU Allwinner H616 Quad Core ARM Cortex A53
    GPU G31 OPenGL3.2
    Memory DDR34GB
    Flash eMMC32GB/64GB
    WiFi IEEE 802.11 b/g/n/ac
    Moudle Plastic : Black  Color
    I/O 1*HDMI 4K*2K UHD Output, HDMI 2.0A
    1*AV OUT 480i/576i standard definition output
    3*USB  3* USB Host Port
    1*RJ45 Ethernet Interface
    1*TF CARD  Support 4GB/8GB/16GB/32GB/64GB
    Power DC 5V/2ALED indicatorWorking Blue; StandbyRed
    Software
    OS Android 10.0
    Video Ÿ  Video Engine (AVE) with dedicated hardware decoders and encoders
    Ÿ  Support multi-video decoder up to 4Kx2K@60fps+1x1080P@60fps
    Ÿ  Supports multiple “secured” video decoding sessions and simultaneous decoding and encoding
    Ÿ  Video Decoding
    -  VP9 Profile 2 up to 4Kx2K@60fps
    -  H.265 Main10@L5.1 up to 4Kx2K@60fps,or 6K@30fps
    -  AVS2-P2 Profile up to 4Kx2K@60fps
    -  H.264 BP/MP/HP@L4.2 up to 4Kx2K@30fps
    -  H.263 BP up to 1080P@60fps
    -  MPEG-4 SP/ASP@L5 up to 1080P@60fps (ISO-14496)
    -  MPEG-2 MP/HL up to 1080P@60fps (ISO-13818)
    -  MPEG-1 MP/HL up to 1080P@60fps (ISO-11172)
    -  Xvid up to 1080P@60fps
    -  Sorenson Spark up to 1080P@60fps
    -  VP8 up to 1080P@60fps
    -  AVS/AVS+ JiZhun Profile up to 1080P@60fps
    -  WMV9/VC1 SP/MP/AP up to 1080P@60fps
    -  JPEG HFIF file format up to 45MPPS
    -  Multiple language and multiple format sub-title video support
    -  MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918)
    -  Supports JPEG thumbnail, scaling, rotation and transition effects
    -  Supports *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4, *.rm and *.jpg file formats
    Audio Supports MP3, AAC, WMA, RM, FLAC, Ogg and programmable with 7.1/5.1 down-mixing
    Audio Codec
    -Two audiio digital-to-analog(DAC) channels
    -Support 16-bit and 20-bit sample rate
    -8kHz to 192kHz DAC sample rate
    -95+/-2dB SNR@A-weight,-80+/-dB THD+N,output Level more than 0.55Vrms
    -One128*24-bits FIFO for DAC data transmit
    built-in TDM/PCM/I2S ports with TDM/PCM mode up to 384kHz x32bits x 8ch or 96kHz x 32bits x 32ch and I2S mode up to 384kHz x 32bits x 8ch
    Digital microphone PDM input with programmable CIC, LPF & HPF, support up to 8 DMICs
    Built-in stereo audio DAC
    Supports concurrent dual audio stereo channel output with combination of analog+PCM or I2S+PCM
    Image HD JPEGBMPGIFPNGTIF
    Language English French German Spanish Italian etc multilateral languages
